Product Description
Specifications:

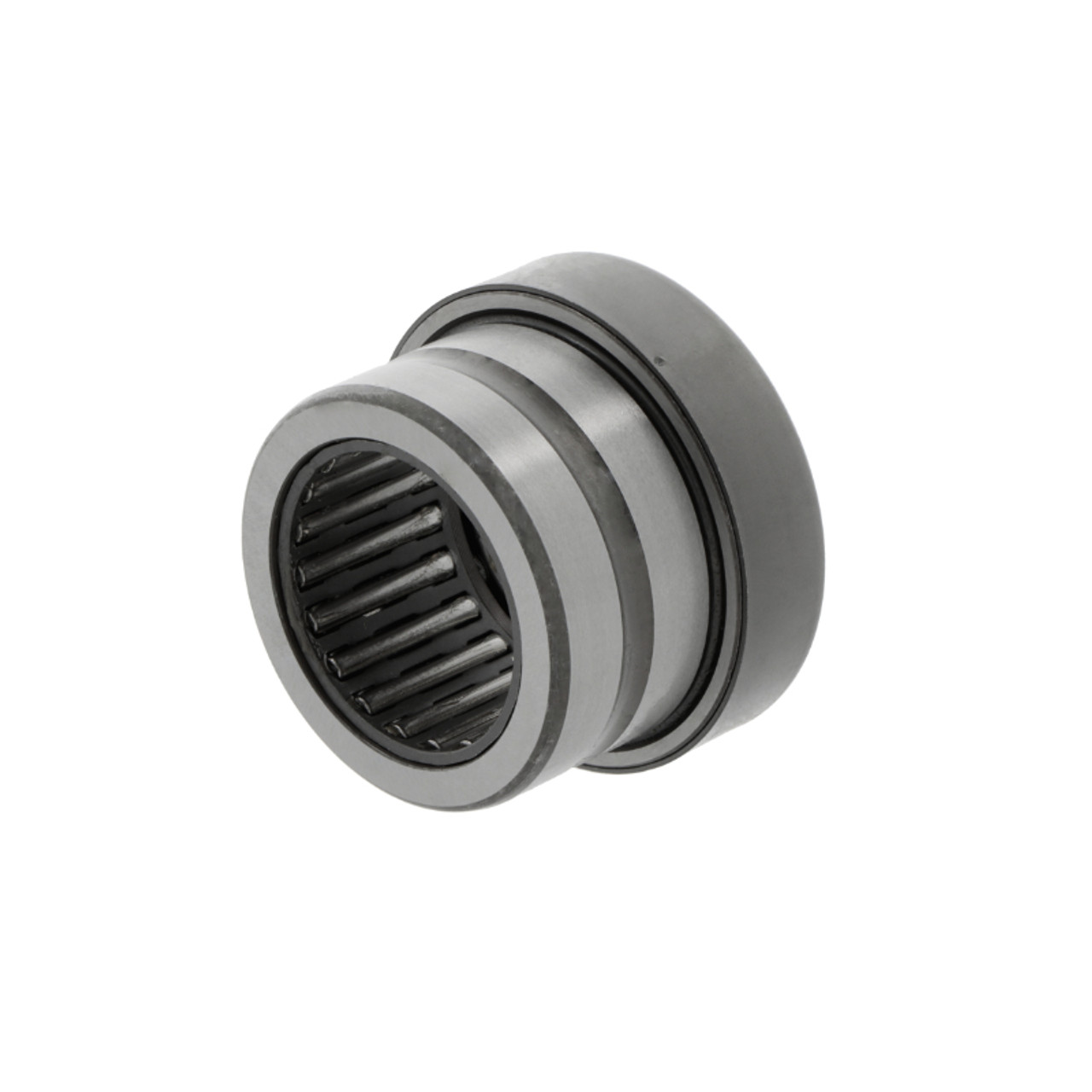

Part Number: NKX40-Z
Brand: Import
Category: Needle Roller/Axial Ball Bearings
ID MM: 40 MM
OD MM: 52 MM
W MM: 32 MM
ID Inches: 1.5748 Inches
OD Inches: 2.0472 Inches
W Inches: 1.2598 Inches
Material: Standard bearing steel
Cage: Sheet steel cage
Temperature Range: -20 to +120 °C
Tolerance Class: Tolerance class P0/PN2 / ABEC 1
Operating Direction: Single direction bearing
Lubrication: For grease lubrication
Version: Self-retaining
Product Information:
New in box NKX40-Z Import Needle Roller/Axial Ball BearingsApplications:
Needle roller/axial ball bearings, also known as combined bearings, are specialized bearings designed to accommodate both radial and axial loads simultaneously. These bearings consist of needle rollers and axial ball bearings arranged side by side in a single housing. They are commonly used in applications where space is limited, and both radial and axial loads need to be supported. Here are some typical applications: Automotive Transmissions, Automotive Clutch Assemblies, Machine Tool Spindles, Aerospace Actuation Systems, Robotics and Automation, Textile Machinery, Material Handling Equipment, Printing Press, Medical Imaging Equipment, Marine Propulsion Systems.
In summary, needle roller/axial ball bearings, or combined bearings, are versatile components used in various applications across industries where both radial and axial loads need to be accommodated simultaneously. They provide high load-carrying capacity, compact design, and precise operation, contributing to the efficiency, reliability, and performance of diverse mechanical systems and equipment.
